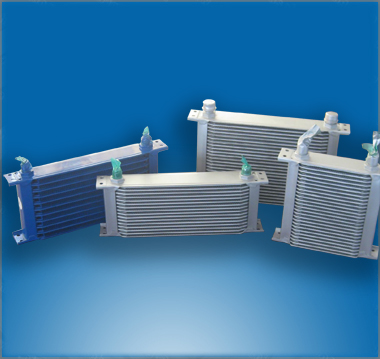

Oil Cooler Size-Mocal Style

Product name : Oil Cooler Size-Mocal Style

Item : Oil Cooler Size-Mocal Style

Details :

Oil Cooler-Mocal Style:

We have most range Oil Coolers,if it's not listed on our above products list then please just feel free to contact us, we will supply you upon receipt your requirement.thanks for your attention!

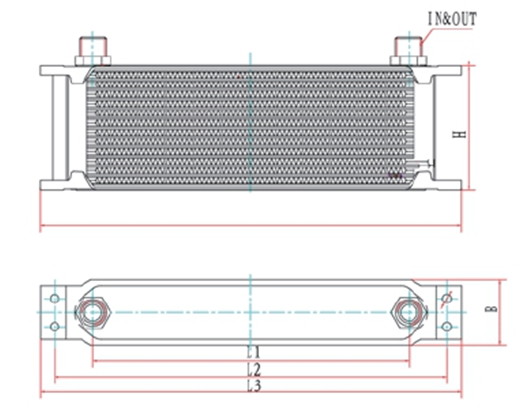

Item No.	Passage	L1	L2	L3	H	B
Item No.	Row	mm	mm	mm	mm	mm
Th248-7	7	248	308	330	54	51
Th248-8	8	248	308	330		51
Th248-9	9	248	308	330	69	51
Th248-10	10	248	308	330	77	51
Th248-11	11	248	308	330		51
Th248-12	12	248	308	330		51
Th248-13	13	248	308	330	100	51
Th248-14	14	248	308	330		51
Th248-15	15	248	308	330	115	51
Th248-16	16	248	308	330	132	51
Th248-17	17	248	308	330		51
Th248-18	18	248	308	330		51
Th248-19	19	248	308	330	146	51
Th248-20	20	248	308	330		51
Th248-21	21	248	308	330		51
Th248-22	22	248	308	330		51
Th248-23	23	248	308	330		51
Th248-24	24	248	308	330		51
Th248-25	25	248	308	330	193	51
Th248-26	26	248	308	330		51
Th248-27	27	248	308	330		51
Th248-28	28	248	308	330	216	51
Th248-29	29	248	308	330		51
Th248-30	30	248	308	330	231	51

Th210-7	7	210		290	90	50
Th210-8	8	210		290		50
Th210-9	9	210		290	117	50
Th210-10	10	210		290	131	50
Th210-11	11	210		290		50
Th210-12	12	210		290		50
Th210-13	13	210		290	172	50
Th210-14	14	210		290		50
Th210-15	15	210		290		50
Th210-16	16	210		290	213	50
Th210-17	17	210		290		50
Th210-18	18	210		290		50
Th210-19	19	210		290	254	50
Th210-20	20	210		290		50
Th210-21	21	210		290		50
Th210-22	22	210		290		50
Th210-23	23	210		290		50
Th210-24	24	210		290		50
Th210-25	25	210		290		50
Th210-26	26	210		290		50
Th210-27	27	210		290		50
Th210-28	28	210		290		50
Th210-29	29	210		290		50
Th210-30	30	210		290		50

Th128-7	7	128		210	47	51
Th128-8	8	128		210		51
Th128-9	9	128		210	62	51
Th128-10	10	128		210	73	51
Th128-11	11	128		210		51
Th128-12	12	128		210		51
Th128-13	13	128		210	97	51
Th128-14	14	128		210		51
Th128-15	15	128		210		51
Th128-16	16	128		210	121	51
Th128-17	17	128		210		51
Th128-18	18	128		210		51
Th128-19	19	128		210		51
Th128-20	20	128		210		51
Th128-21	21	128		210		51
Th128-22	22	128		210		51
Th128-23	23	128		210		51
Th128-24	24	128		210		51
Th128-25	25	128		210		51
Th128-26	26	128		210		51
Th128-27	27	128		210		51
Th128-28	28	128		210		51
Th128-29	29	128		210		51
Th128-30	30	128		210		51

Oil Cooler-Mocal Style:

1.Made with super light weight high quality aluminum.

2.Useable to cool engine oil, transmission,or rear-differentials.

3.Excellent for modiﬁed street vehicles that are driven hard with minimal track use.

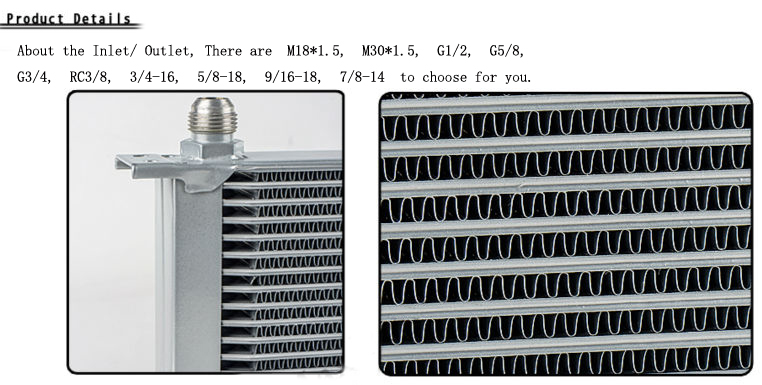

4.About the Inlet/ Outlet, Normal Size:AN10 Male.
Other screw thread are available upon requirement,There are M18*1.5, M30*1.5, G1/2, G5/8, G3/4, RC3/8, 3/4-16, 5/8-18, 9/16-18, 7/8-14 to choose for you.

5.No instructions included.

6.Professional installation is highly recommended.

Standard colour:Silver, Optional colour:Blue,Black,etc.
